CUSTOM HIGH TEMPERATURE RF SOLUTIONS
Measure Tech has the ability to offer custom connectors and other solutions to pair with our existing SiO2 cable technology. RF cable assemblies can be offered in a variety of cable diameters and lengths with one connecting being a standard RF connector such as a SMA or Type N to interface with your system’s equipment and the other end being a custom, hermetically sealed connector that is an extension of the coaxial cables center conductor to act as an antenna, thus eliminating the need for intermediate RF cabling, or to serve other purposes in your system such as direct attachment to a PCB board. These connectors can be made in different diameters, lengths, and flange/mounting styles.
Applications
- RF systems that are exposed to extreme environmental conditions
- Could be utilized in defense, space, aviation, or commercial environments
Features
- Custom connectors can be made in different diameters, lengths, and flange/mounting styles
- Cable can withstand temperatures as high as 1000°C
- Can be made utilizing any of Measure Tech’s SiO2 cable diameter offerings
- One end of coaxial cable can be terminated with MIL-STD connectors such as SMA, type N, and many others as well as custom connectors
- Hermetically sealed (< 1 x 10-8 cc He/sec)
- 50 ohm nominal impedance
- Excellent chemical and radiation resistance
Advantages
- High reliability
- Extremely rugged for use in extreme operating conditions

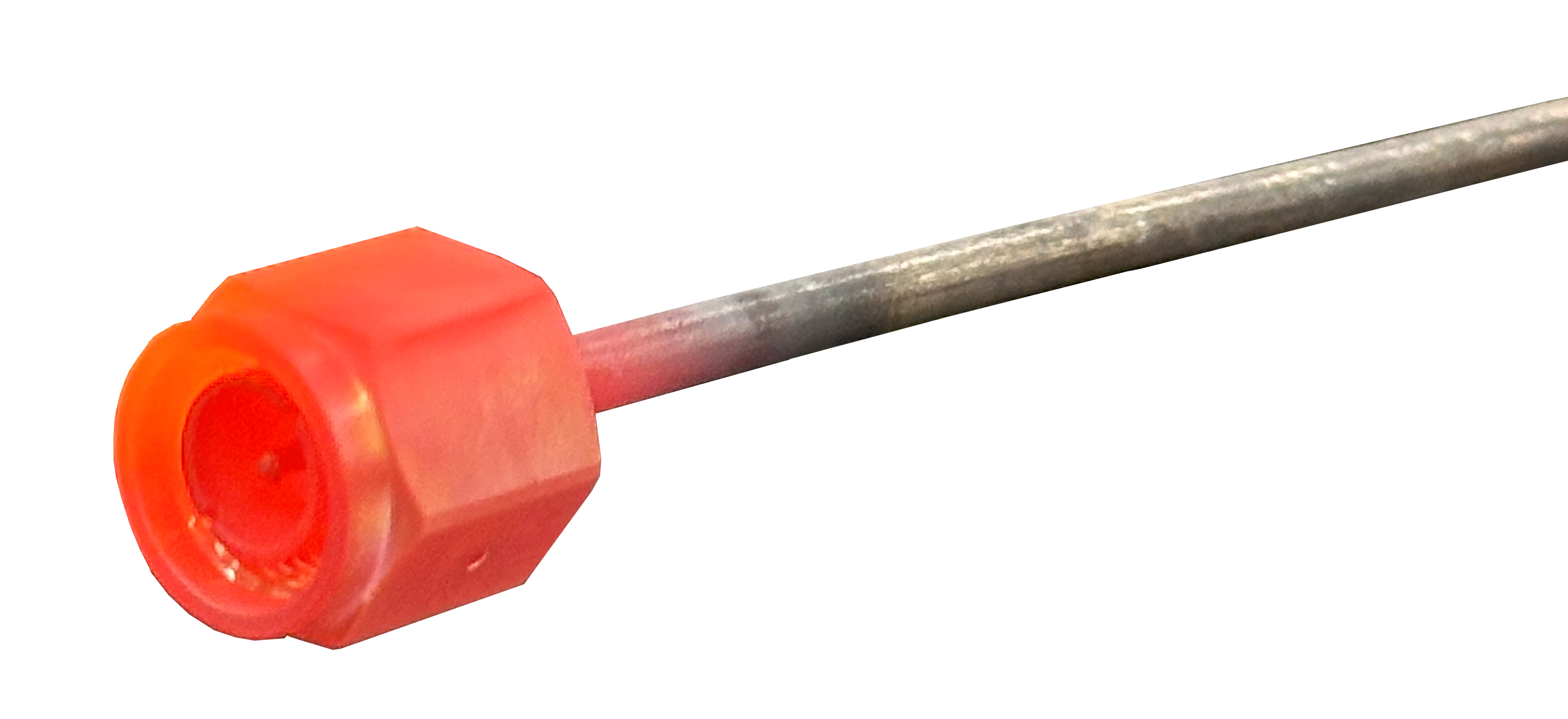

High Temperature RF Cable and Connectors
Measure Tech’s SiO2 cables can withstand temperature exposures up to 1000°C and our connector technology can withstand up to 600°C. However, Measure Tech can offer design solutions for temperature requirements exceeding these temperatures. Contact us to learn more!

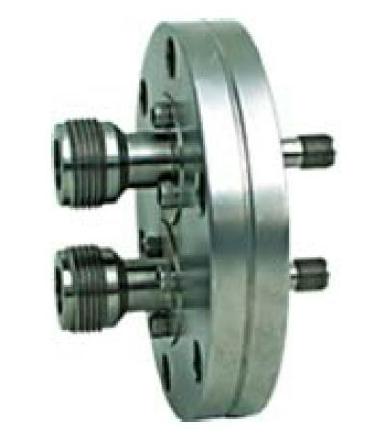

High Temperature RF Connector Solutions
Measure Tech can design and manufacture custom, high temperature RF connectors, adapters, and feedthroughs to meet the needs of your system.

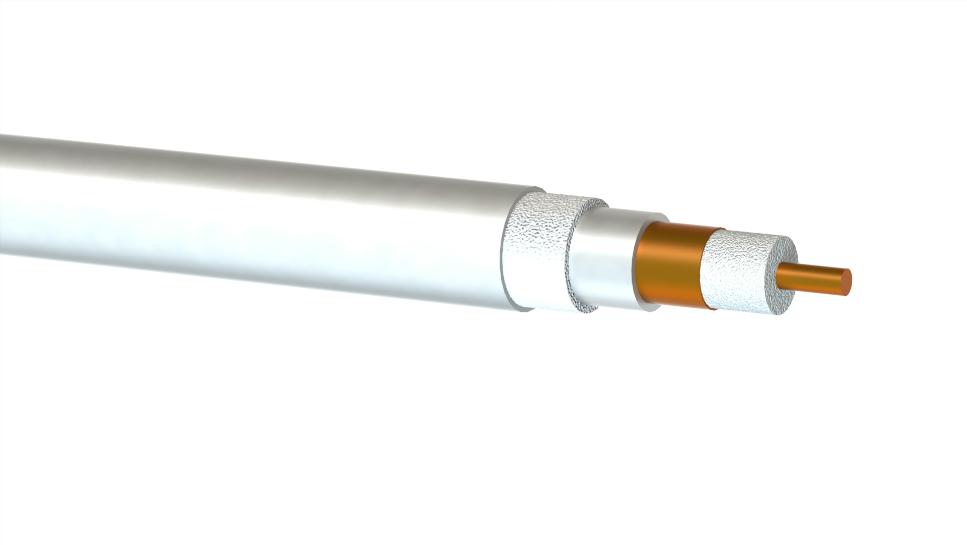

High Temperature Triaxial RF Cables
Measure Tech produces high temperature, triaxial RF cables using their SiO2 coaxial cable technology.
Features & Benefits:
- Can be custom made from any of Measure Tech’s SiO2 cable diameter offerings Low capacitance and excellent capacitance stability over temperature
- Can be terminated with any RF or custom designed connector
- Provides an additional shield against EMI interference
- Triax cable can withstand upto 1000°C
